Features:

1.Brushless Motor Design: Surpass Hobby Rocket-RC Supersonic V2 Brushless Motor 4268 4274 4282 4292 is pole-4 rotor design, with strong torque and stable output power,Removable/replaceable rotor design, Convenient for cleaning and maintenance

2.For Traxxas Brushless Motor: Suitable for 1/8 1/7 RC Car Truck Off Road on Road Traxxas Wltoys HSP.Built in switch BEC output, low voltage 5A/6.1V, high voltage 5A/7.4V, compatible with high torque and high pressure steering gear. Provide rich personalized settings with the setting card

3.RC Car Brushless Motor Material: High hardness aluminum CNC case, high temperature resistant copper wires, 0.2mm stator .Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super durable.Effectively extend the service life of the motor and improve work efficiency

4.Brushless RC Motor Protection Function: The motor has built-in temperature unit and ports which can realize the motor temperature .Overheat protection function by matching with the ESC

5.RC Brushless Motor ESC Combo: Work with Supersonic V2 120A or 150A ESC and Surpass Hobby ROCKET -V2 Supersonic LED ESC Program Card, you can consult our customer service to recommend to you

Description:

Surpass Hobby Rocket-RC Supersonic V2 Brushless Motor 4268 4274 4282 4292 for 1/8 1/7 RC Car Truck Off Road on Road Traxxas Wltoys HSP. Pole-4 rotor design, with strong torque and stable output power,Removable/Replaceable Rotor design, Convenient for cleaning and maintenance

Specifications:

Brand: SURPASSHOBBY ROCKET-RC

Rotor poles: 4

Max RPM: 50000

Shaft: 5mm

Connector: 6.5mm gold

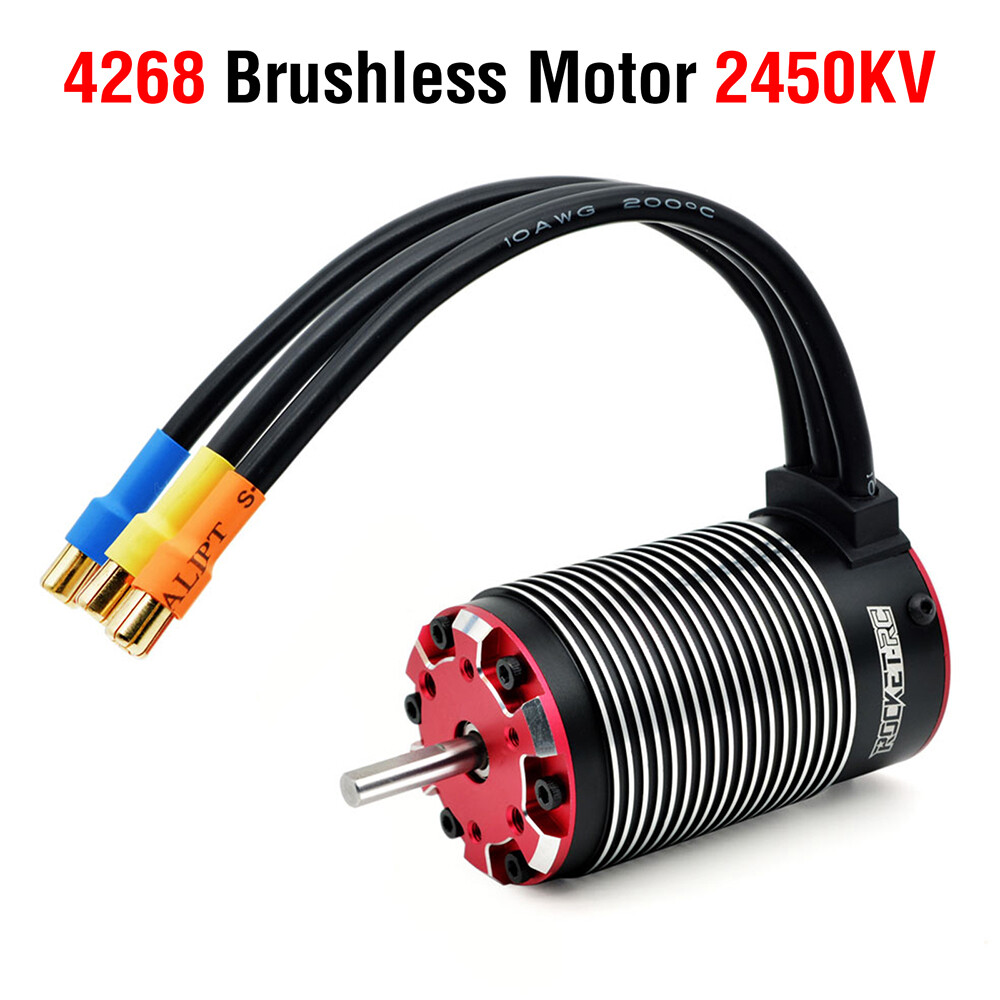

1. 4268 Supersonic Brushless Motor

Watt: 2200

Weight: 340g

Length of extend shaft: 18mm

Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x68

KV(RPM/Volt): 2450KV

Max voltage: <21V

Max amps: 105A

IO: 2.7A

Resistance: 0.0056

KV(RPM/Volt): 2200KV

Max voltage: <23V

Max amps: 95A

IO: 2.3A

Resistance: 0.0069

KV(RPM/Volt): 1980KV

Max voltage: <25V

Max amps: 88A

IO: 1.8A

Resistance: 0.0115

KV(RPM/Volt): 1650KV

Max voltage: <30V

Max amps:72A

IO: 1.5A

Resistance: 0.0132

2. 4274 Supersonic Brushless Motor

Watt: 2800

Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x74

Weight: 380

Length of extend shaft: 18mm

KV(RPM/Volt): 2500KV

Max voltage: <20V

Max amps: 140A

IO: 2.8A

Resistance: 0.0049

KV(RPM/Volt): 2025KV

Max voltage: <25V

Max amps: 112A

IO: 2.4A

Resistance: 0.0061

KV(RPM/Volt): 1850KV

Max voltage: <26V

Max amps: 108A

IO: 1.6A

Resistance: 0.0076

KV(RPM/Volt): 1500KV

Max voltage: <30V

Max amps: 92A

IO: 1.1A

Resistance: 0.0142

3.4282 Supersonic Brushless Motor

Watt: 3400

Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x82

Weight: 440

Length of extend shaft: 20mm

KV(RPM/Volt): 2150KV

Max voltage: <23V

Max amps: 150A

IO: 2.5A

Resistance: 0.0056

KV(RPM/Volt): 1780KV

Max voltage: <28V

Max amps: 120A

IO: 2.2A

Resistance: 0.0067

KV(RPM/Volt): 1600KV

Max voltage: <31V

Max amps: 110A

IO:1.9A

Resistance: 0.0083

KV(RPM/Volt): 1450KV

Max voltage: <34V

Max amps: 100A

IO:1.8A

Resistance: 0.0132

4. 4292 Supersonic Brushless Motor

Watt:4200

Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x92

Weight: 506g

Length of extend shaft: 20mm

KV(RPM/Volt): 1780KV

Max voltage: <28V

Max amps: 150A

IO: 2.4A

Resistance: 0.0063

KV(RPM/Volt): 1500KV

Max voltage: <33V

Max amps: 128A

IO: 2.2A

Resistance: 0.0073

KV(RPM/Volt): 1300KV

Max voltage: <36V

Max amps: 115A

IO: 2.1A

Resistance: 0.0093

 KV(RPM/Volt): 1030KV

Max voltage: <42V

Max amps: 100A

IO: 1.8A

Resistance: 0.0176

Package Included:

1x  SURPASSHOBBY Supersonic Brushless Motor

1x  English Manual

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
